Symphony Sleep Es500
The Symphony Sleep ES500 has two different ad-on options elevation kit and the hi low kit. The hi low kit does both the elevation and hi low which the elevation kit does only the elevation feature. There are also underbed lighting sensors. The main difference between the ES600 and the ES500 is that the ES500 does not have lumber support.
Highlighted Features

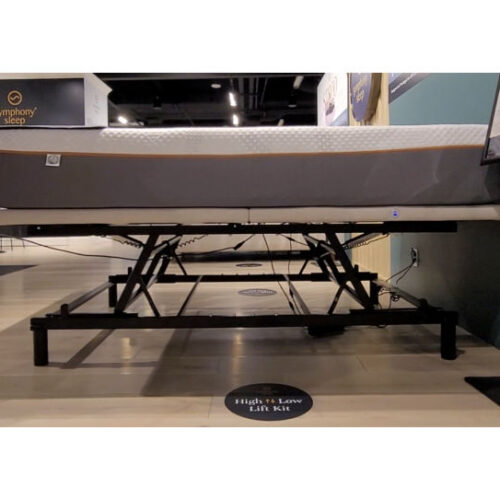

Hi Low Kit
The height of the hi-low kit before the legs are attached is 8.6 inches. With the frame and hi-low kit attached, the minimum height is 10.1 inches, and the highest position is 21.8 inches when using a small section leg. The small section leg must be used with the hi-low kit. The hi-low kit requires a small leg at a minimum, but with all the legs attached, the highest position is 32.0 inches and the lowest position is 21.2 inches.

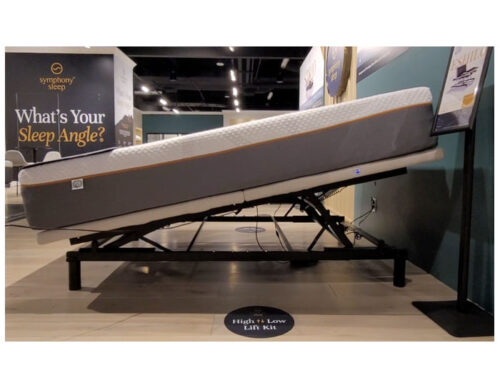

Elevation Kit
The lowest height of the bed with all the legs extended is 21.2 inches. When the base is fully angled at the foot, the maximum elevation reaches a height of 36 inches. Most people do not use the bed at this full height, as the elevation can be stopped at any point along the way, similar to the hi-low position. Most acid reflux sufferers do not use the full height setting.
Specifications
Motion Control
- Head 60° and Foot 40° Movement
Base Control
- Wireless Remote
- 16-Function Wireless Ergonomic Remote Control
- 2 Programmable Memory Positions & 3 Preprogrammed Positions: Zero Gravity, Anti-Snore, and Flat
Massage
- Integrated Massage
Frame
- Platform Friendly
- German Engineered Motor
- USB-A and USB-C Charging Ports
- 4 Easy Access Charging Ports: 2 USB-A / 2 USB-C
- Motion Activated Underbed Lighting
- Upscale Star Dust Gray Upholstery Fabric
- Strong Angle Iron and Steel Tubular Frame Construction
- Safety Plus™ Features: Emergency Power Down
- Recessed 4-in-1 Legs Legs Allow for Multiple Base Heights
- 800 lb Total Weight Capacity
- Weight Capacity Queen – 650 lb, King – 800 lb
Add on Option
- SleepSense® Compatible
- Elevation Kit
- Hi Low Kit
Sizes
- Split California King, Split King
- Single King, Queen, Twin XL
Assembly Videos
Assembly Video
This video shows the full setup of the base without the elevation kit or hi-low kit
Elevation Kit Assembly
The video will show how to assemble the Elevation kit on the base.
Assembly Video
This video shows the full setup of the base without the elevation kit or hi-low kit
